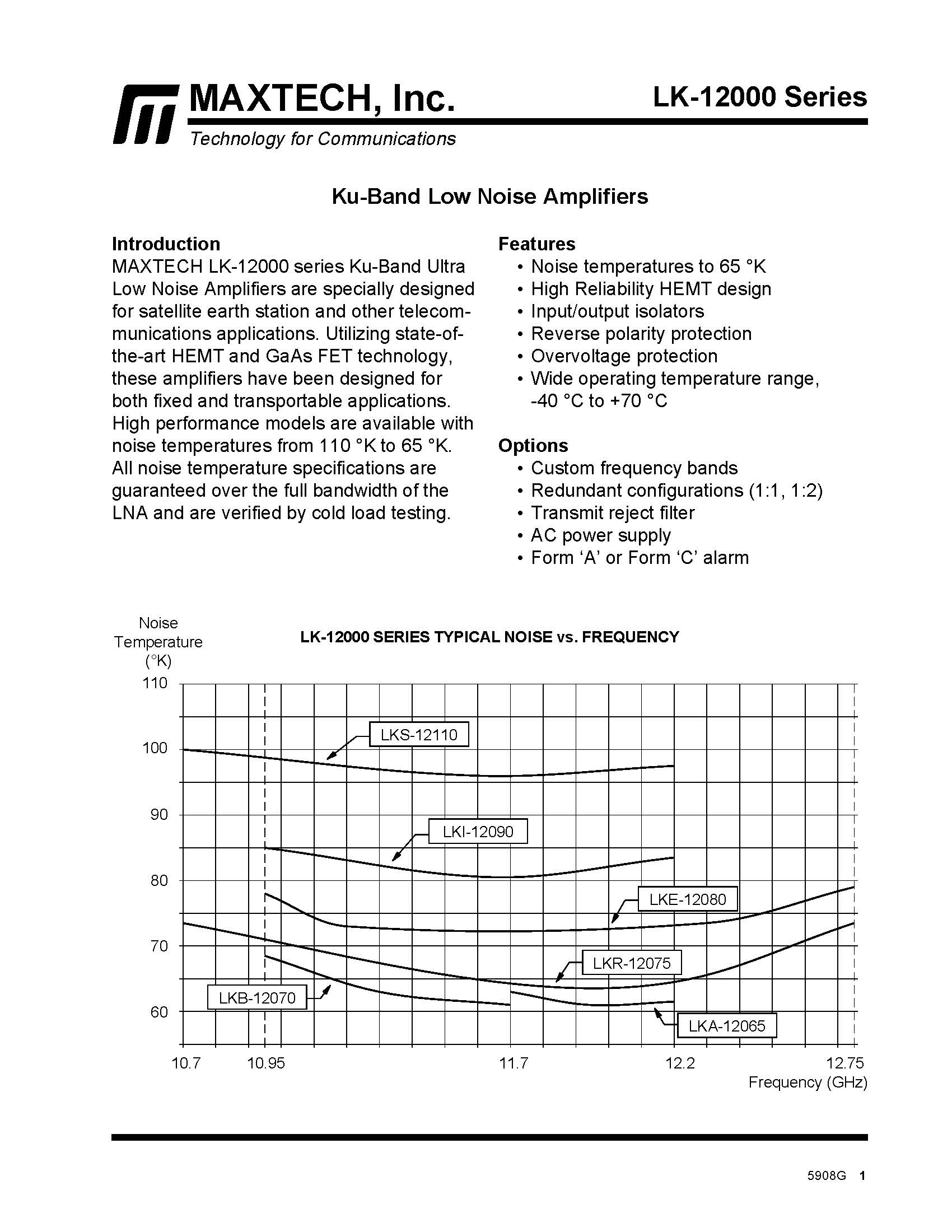

Ku-Band LK12000 Series
Maxtech LNA LK-12000

Ku-Band LK12000 Series. LK12000 . Frequencies 11.70 ~ 12.20 GHZ. 65K temperature with "N" output connector. This model are specially designed for satellite earth station and other telecommunications applications. Utilizing state-of-the-art HEMT and GaAs FET Technology, these amplifiers have been designed for both fixed ans transportable applications. All noise temperature specifications are guaranteed over the full bandwidth of the LNA and are verified by cold load testing.

• Noise temperatures to 65 °K

• High Reliability HEMT design

• Input/output isolators

• Reverse polarity protection

• Overvoltage protection

• Wide operating temperature range,

-40 °C to +70 °C
