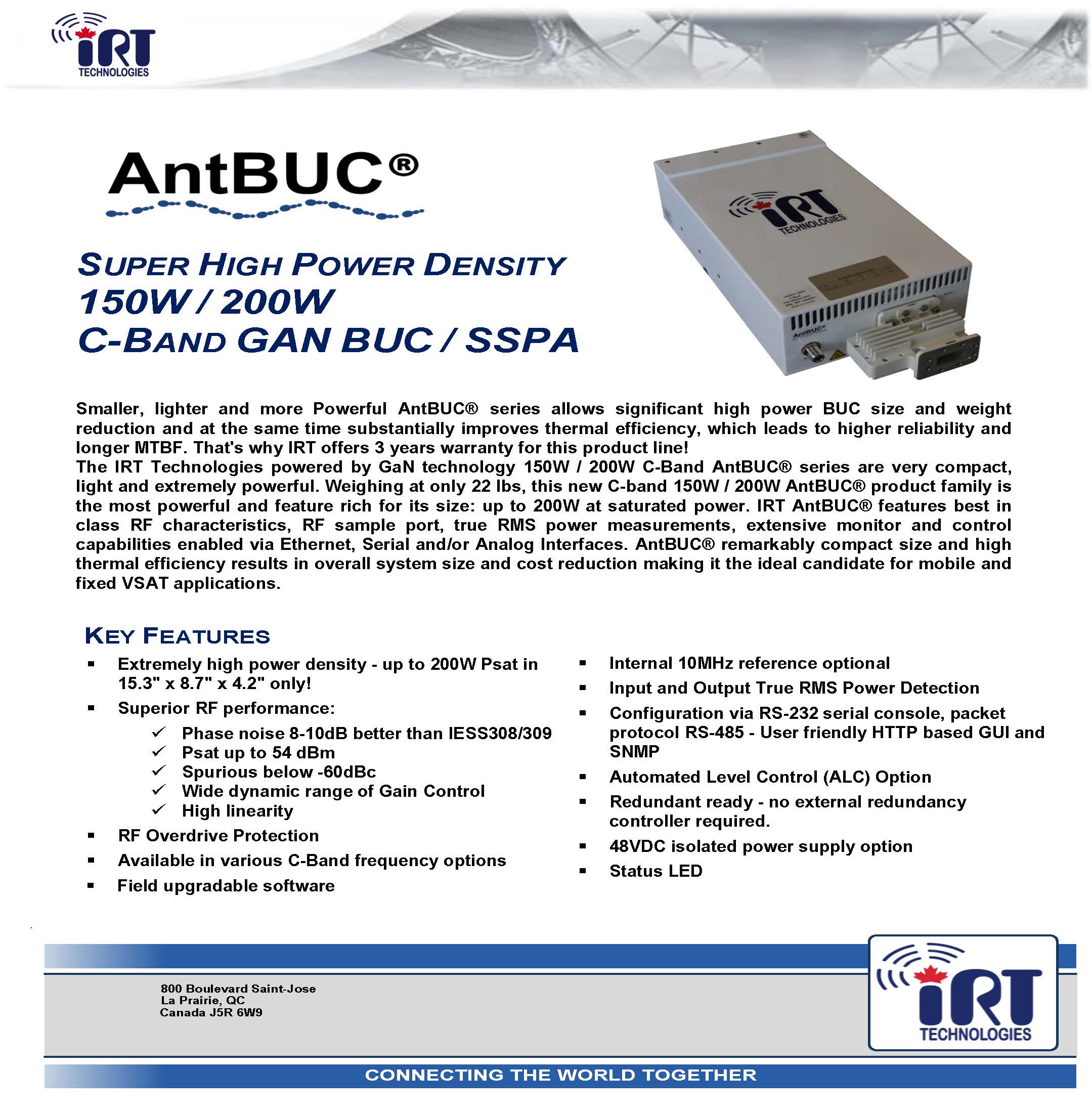

Model AntBUC
IRT C-Band BUC 150-200W

The IRT Technologies powered by GaN technology 150W / 200W C-Band AntBUC® series are very compact, light and extremely powerful. Weighing at only 22 lbs, this new C-band 150W / 200W AntBUC® product family is the most powerful and feature rich for its size: up to 200W at saturated power.

- Extremely high power density - up to 200W Psat in 15.3" x 8.7" x 4.2" only!
- Superior RF performance:
- Phase noise 8-10dB better than IESS308/309
- Psat up to 54 dBm
- Spurious below -60dBc
- Wide dynamic range of Gain Control
- High linearity
- RF Overdrive Protection
- Available in various C-Band frequency options
- Field upgradable software

- Internal 10MHz reference optional
- Input and Output True RMS Power Detection
- Configuration via RS-232 serial console, packet protocol RS-485 - User friendly HTTP based GUI and SNMP
- Automated Level Control (ALC) Option
- Redundant ready - no external redundancy controller required.
- 48VDC isolated power supply option
- Status LED
